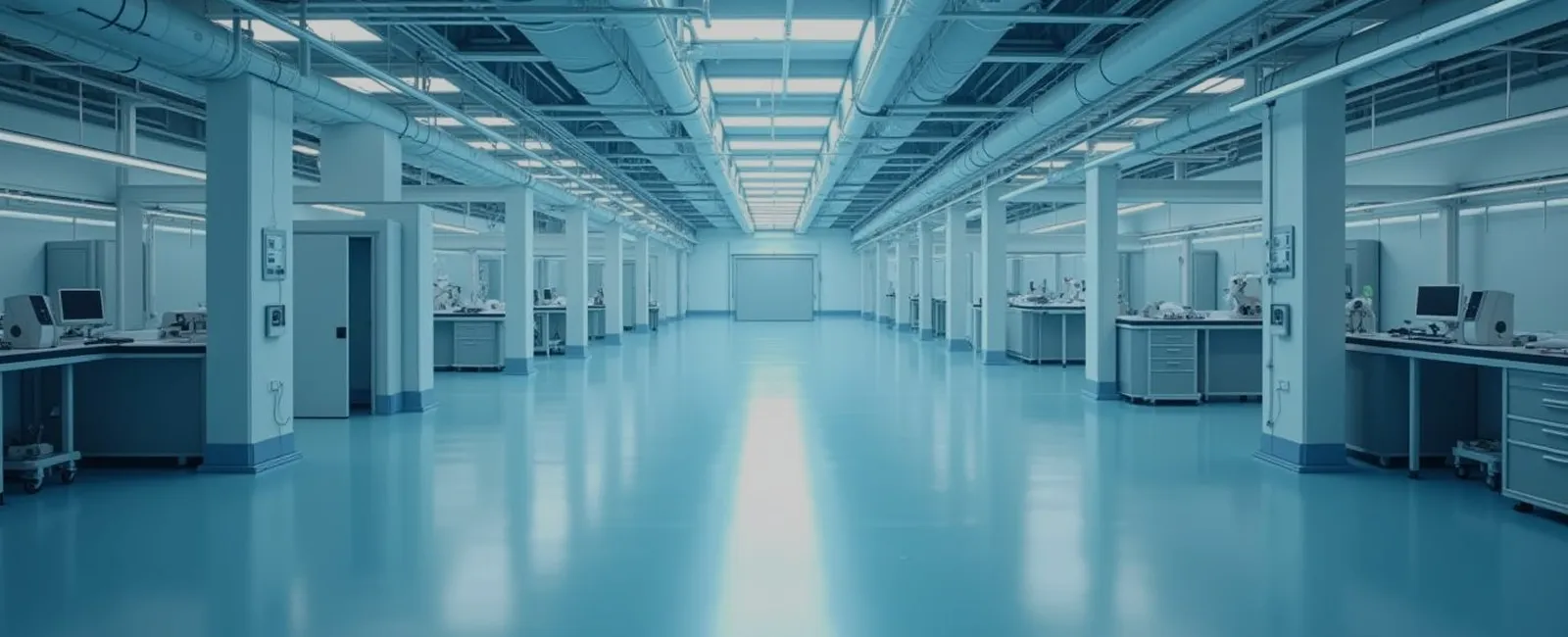

Optimizing the Environment Through Central HVAC Systems
Special HVAC systems enable precise control of temperature and humidity, providing advanced technologies and customized solutions to protect sensitive equipment and ensure research accuracy
* Special HVAC refers to precision air conditioning systems designed for industrial sites and laboratories
Why Izzla
Izzlaz designs HVAC systems for specialized facilities such as industrial sites and laboratories
Services 1
Special HVAC (CR/DR)
• CR: Clean Room, DR: Dry Room
Services 2
Environmental Improvement
• Air and water quality management and environmental enhancement • Building and facility HVAC system redesign and installation
Services 3
Performance Guarantee
• Ensuring HVAC equipment performance • Repair and maintenance services
Needs
Why Do You Need Special HVAC?
Clean Environment and Energy Efficiency
We analyze each facility's installation environment to design appropriate special HVAC (CR/DR) systems, followed by maintenance services to maintain cleanliness and optimize energy efficiency
Optimal Facility Conditions Through Customized Control
We reduce dust, volatile organic compounds (VOCs), and microorganisms while maintaining precise control of temperature, humidity, and pressure to ensure optimal working conditions

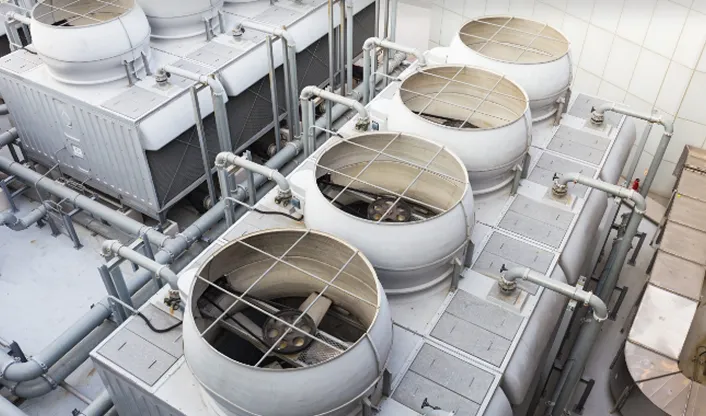

Scrubber Maintenance
Scrubbers, as exhaust gas treatment devices, purify and discharge various toxic gases. Regular maintenance is essential as treatment efficiency decreases and pipe corrosion occurs with long-term use

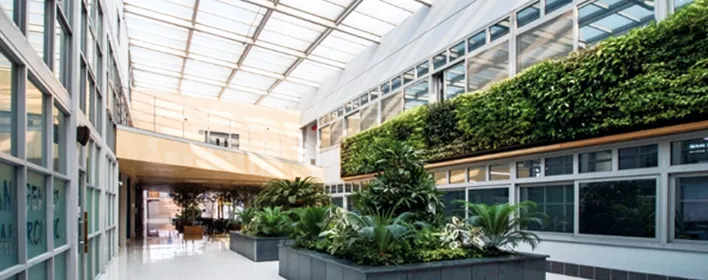

Building/Facility Maintenance
We calculate and design loads to improve indoor air quality and implement equipment suitable for the environment, creating comfortable workspaces and enhancing operational efficiency
Particle Control
Filter Maintenance and Replacement
Particle Removal
Temperature and Humidity Control
Pressure Control
Air Quality Monitoring
Special HVAC
What Is Special HVAC?

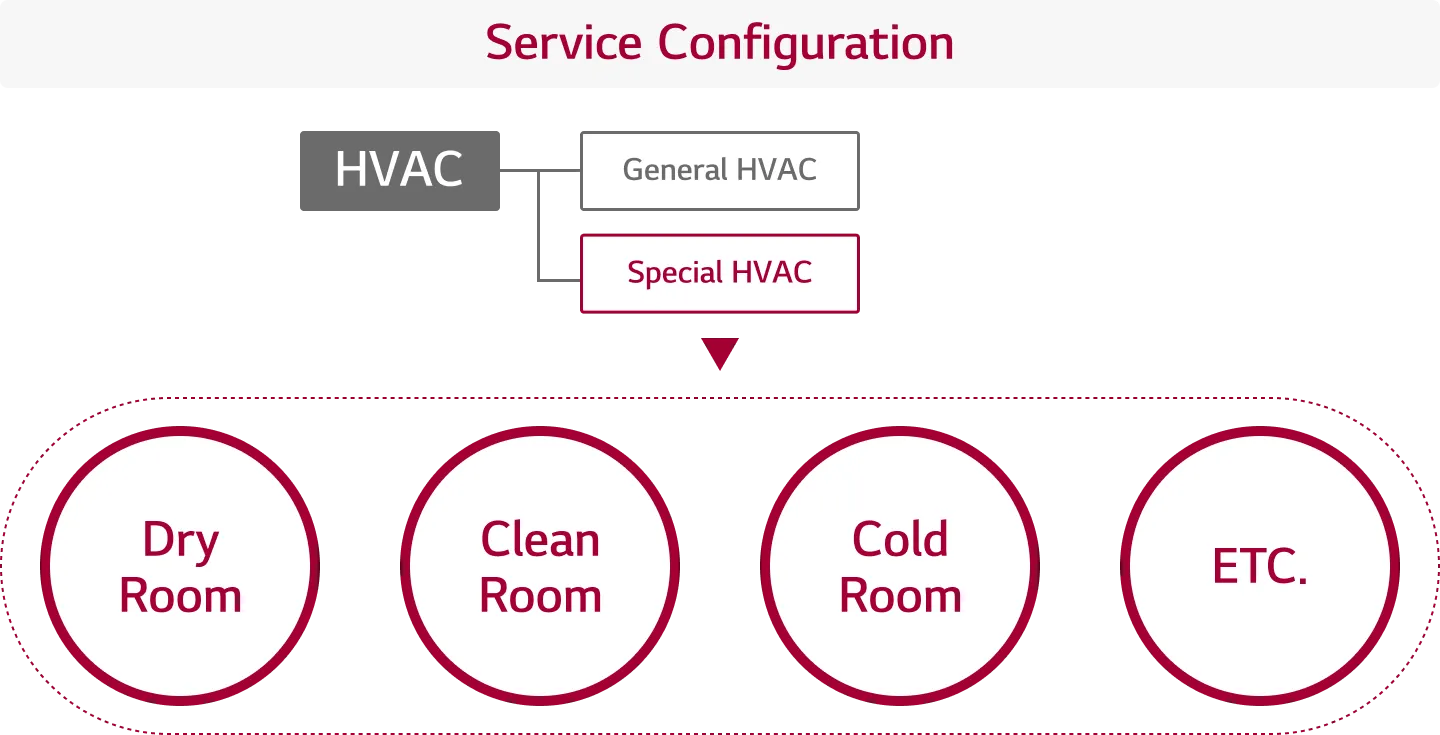

HVAC (Heating, Ventilation, and Air Conditioning) systems are categorized into general and special HVAC. Special HVAC is a specialized field that provides comprehensive control of environmental factors including temperature, humidity, air flow, air pressure, and air quality
Room Design
Room Design Solutions

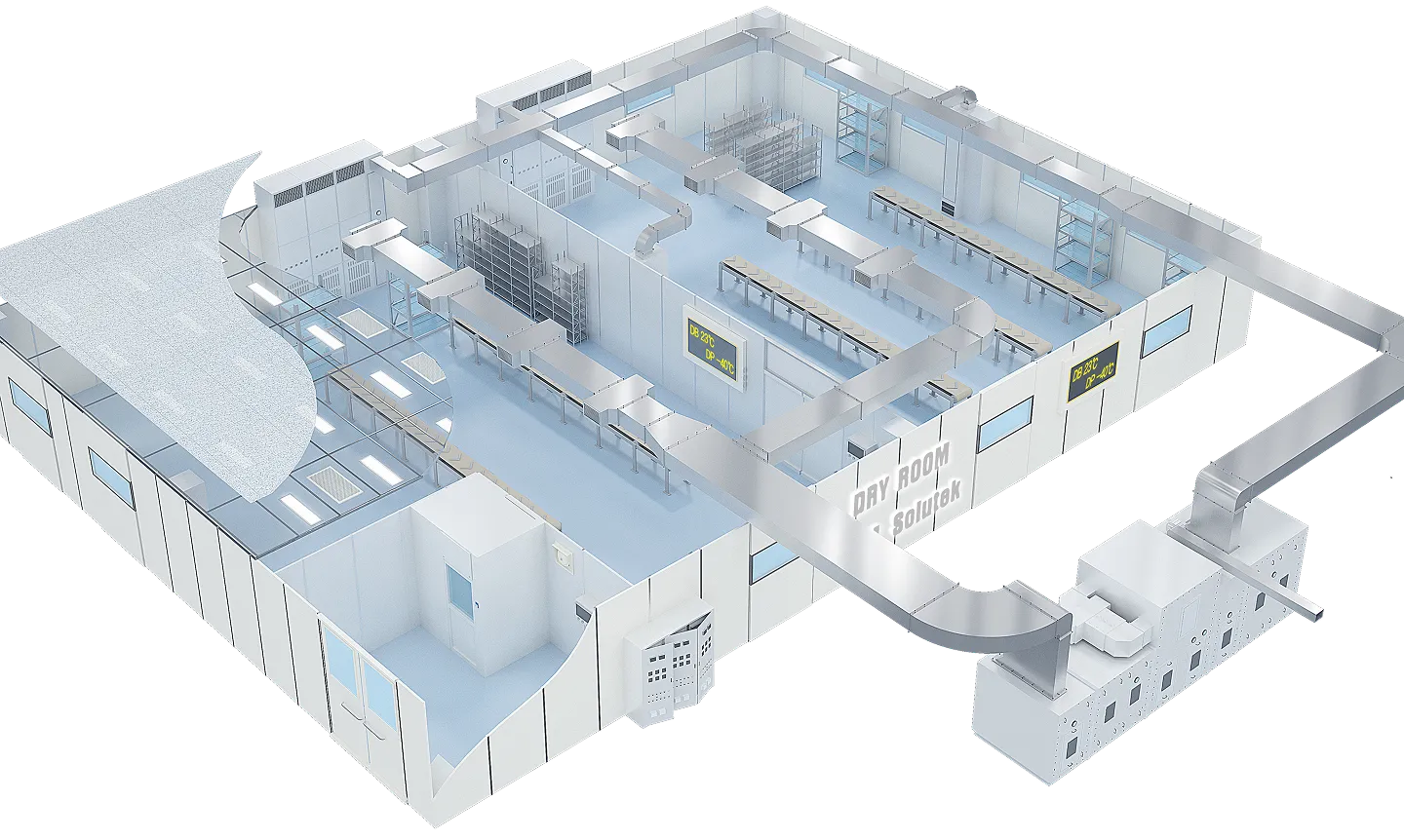

Dry Room Solutions
Applications: Battery manufacturing, electrolyte production, bioscience, and more
A dry room maintains an indoor dew point of -10°C or below and relative humidity of 10% or less. These systems are increasingly used in EV battery manufacturing facilities, one of the fastest-growing industries
Components
Key Design Features
Energy Efficiency
Security
Reliability
Stability
Dry Room Components
Architecture: Panels and flooring
Equipment: Dehumidification systems
Infrastructure: Ductwork and piping
Electrical: Lighting and heating systems
Design Considerations
Occupancy levels
Air displacement
Positive pressure requirements
Access points
Additional Components
Moisture Control
Moisture-resistant clothing, moisture collection systems, airlocks, pass-through chambers
Static Control
Conductive flooring, anti-static coatings

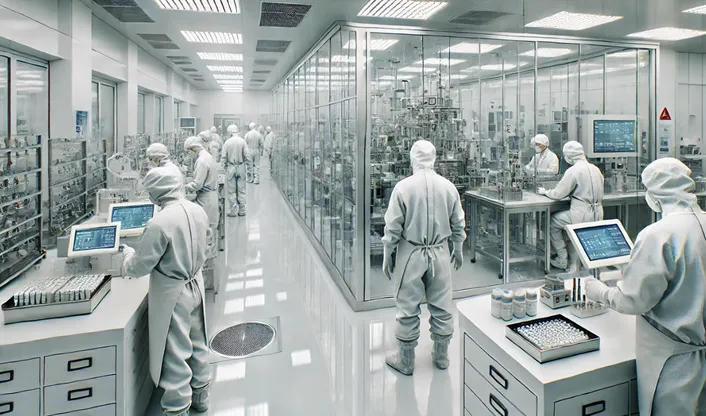

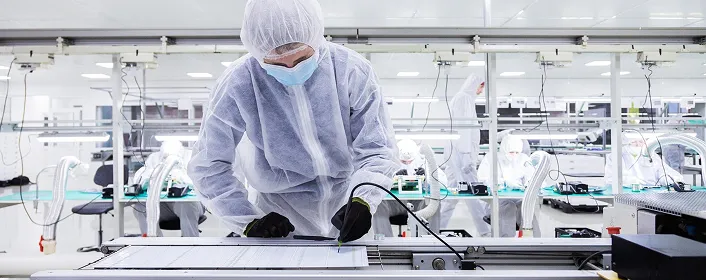

Clean Room Solutions
Applications: Semiconductor manufacturing, pharmaceutical production, and related industries

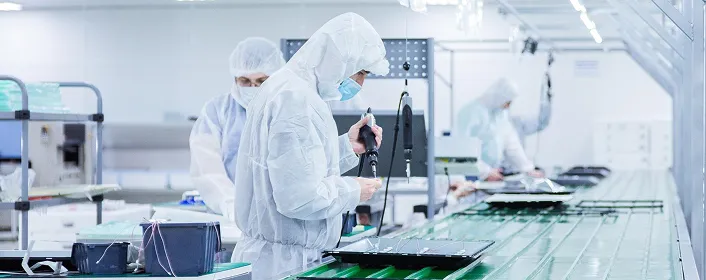

A clean room is a controlled environment where air conditions including temperature, humidity, and air pressure are precisely regulated based on particulate levels. These facilities are essential for manufacturing processes in industries such as semiconductors, optical lenses, and biopharmaceuticals
Clean Room Standards
Clean Room Classification
Classification Criteria
Particle Count Standards:
Cleanliness is measured by the
presence of particles 0.5 µm or larger in a cubic foot of air
ISO Standards:
International standards established by the
International Organization for Standardization
Maximum Particle Concentration Standards (particles/m³)
Standard
Maximum Permissible Particle Concentration (particles/m³)
ISO
Class
≥0.1µm
≥0.2µm
≥0.3µm
≥0.5µm
≥1µm
≥5µm
ISO 1
10
2
ISO 2
100
24
10
4
ISO 3
Class 1
1,000
237
102
35
8
ISO 4
Class 10
10,000
2,370
1,020
352
83
ISO 5
Class 100
100,000
23,700
10,200
3,520
832
29
ISO 6
Class 1,000
1,000,000
237,000
102,000
35,200
8,320
293
ISO 7
Class 10,000
352,000
83,200
2,930
ISO 8
Class 100,000
3,520,000
832,000
29,300
Key Components
Primary Equipment
HEPA Filters
Clean Booths
Blower Filter Units (BFU)
Fan Filter Units (FFU)
Air Showers
Air Handling Units (AHU)
Cold Room Solutions
Applications: FAB facilities and related industries
Cold rooms are essential components of FAB facilities, designed to maintain indoor temperatures below 5°C for storage and testing purposes
Air quality

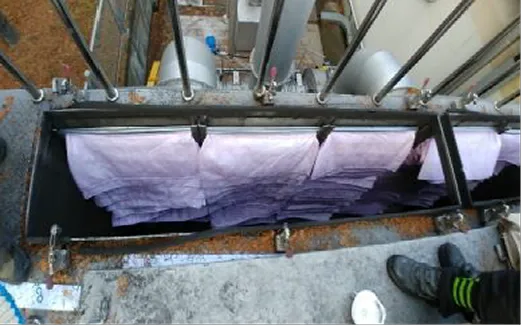

Air quality management Refurbishment Scope

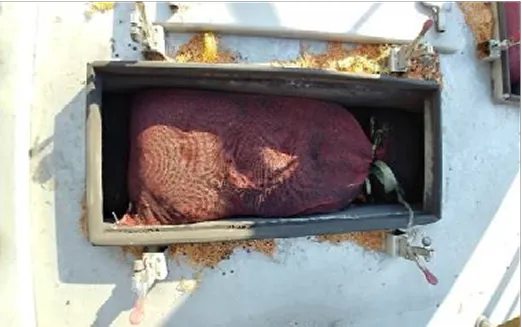

Replace activated carbon
Increase efficiency by replacing activated carbon

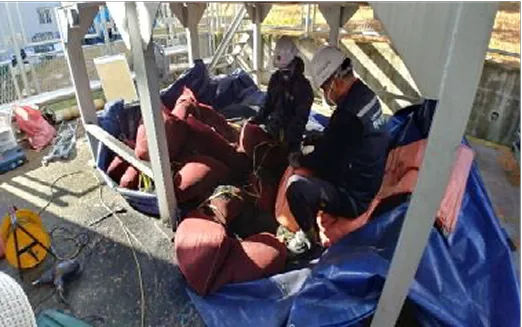

Activated carbon removal and disposal
Remove contaminated activated carbon
Work with waste and organize cleanup
Replacing a product
Replacing and repairing major components such as filters and internal networks
Filter replacement/maintenance
Analyze product design health
Post-improvement performance assurance projects
Building/faclity
Environmental improvement project
Retrofitting equipment for proper heating and cooling for environmental conditions
Consulting and selection of appropriate equipment for the site, including air handlers, ventilation units, etc.
Environmental Improvement Project
Building Ceilings for a Comfortable Environment
Window replacement

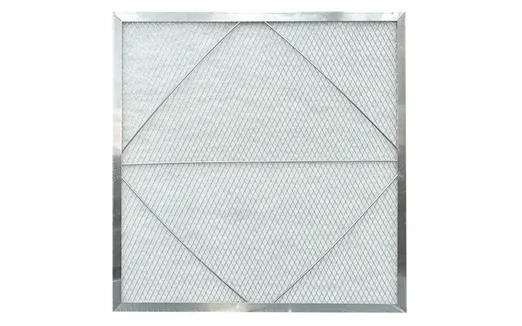

Check and replace filters
Regular replacement of pre/medium filters, clean room filters (ULPA, HEPA), deodorizing filters, etc.
